LSOS-H SERIES RIBBON LED PANEL

Product Detail

• High contrast ratio, High refresh rate, no ghosing

• High temperature resistance {<}60'c Max

• Soft mask protects players & LED lamps with wider viewing angle

• Perfect alignment no gaps with fast lock

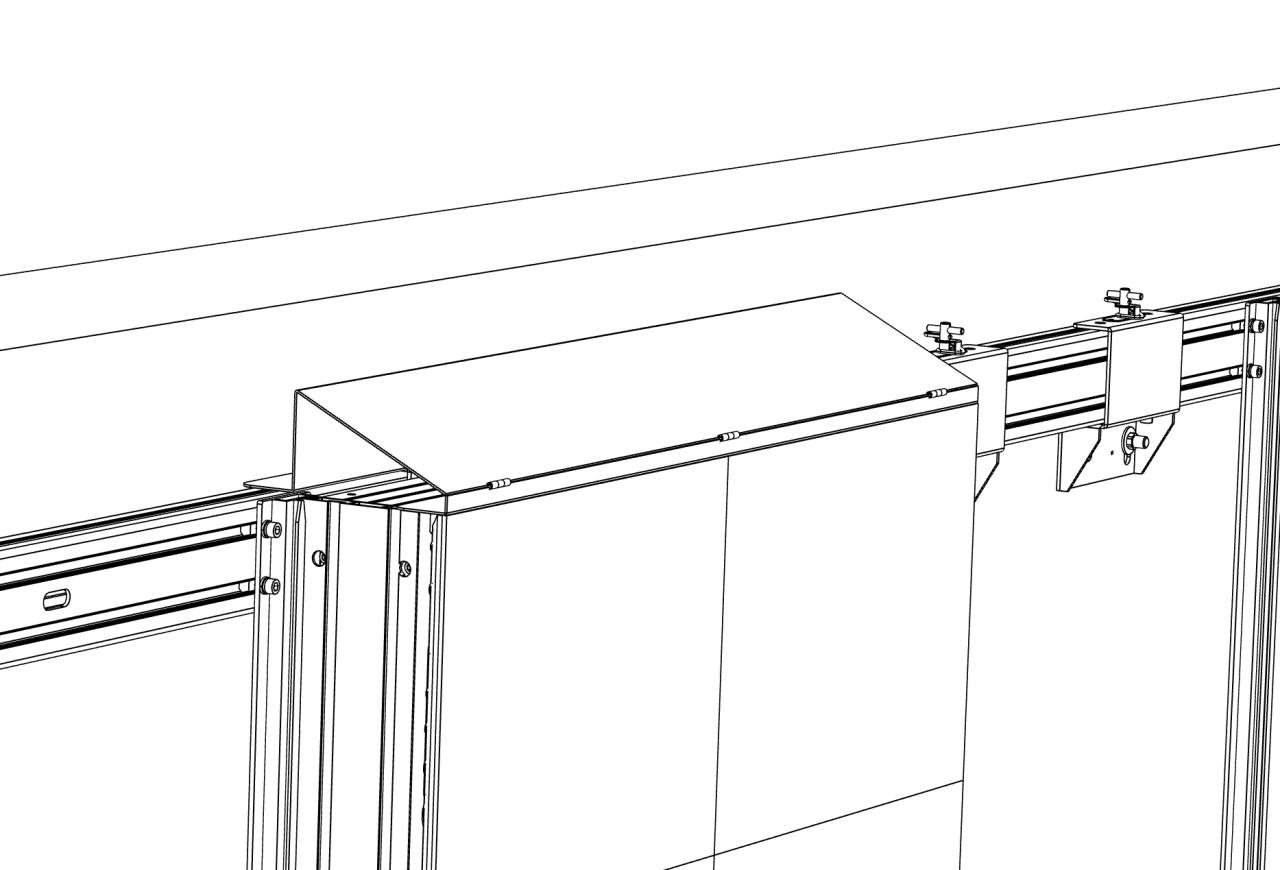

• Customized Sliding mechanism for easier maintenance from top side

• Sealed aluminum module design,higher lP level

• Max brightness reach 10000cd'sqm is supported

• Energy saving design-Common Cathode Chips lC

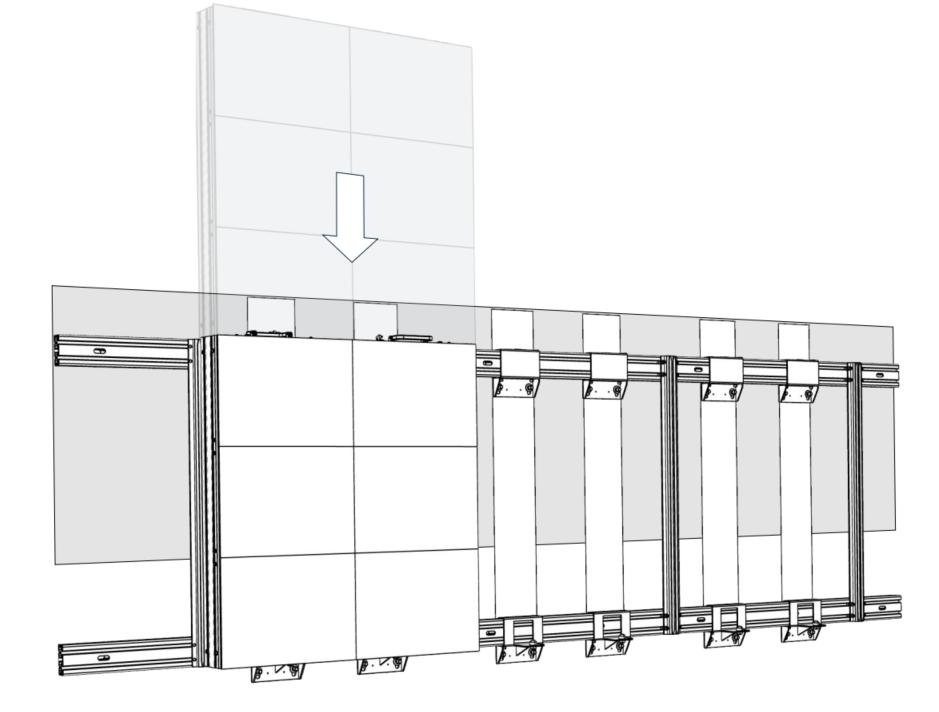

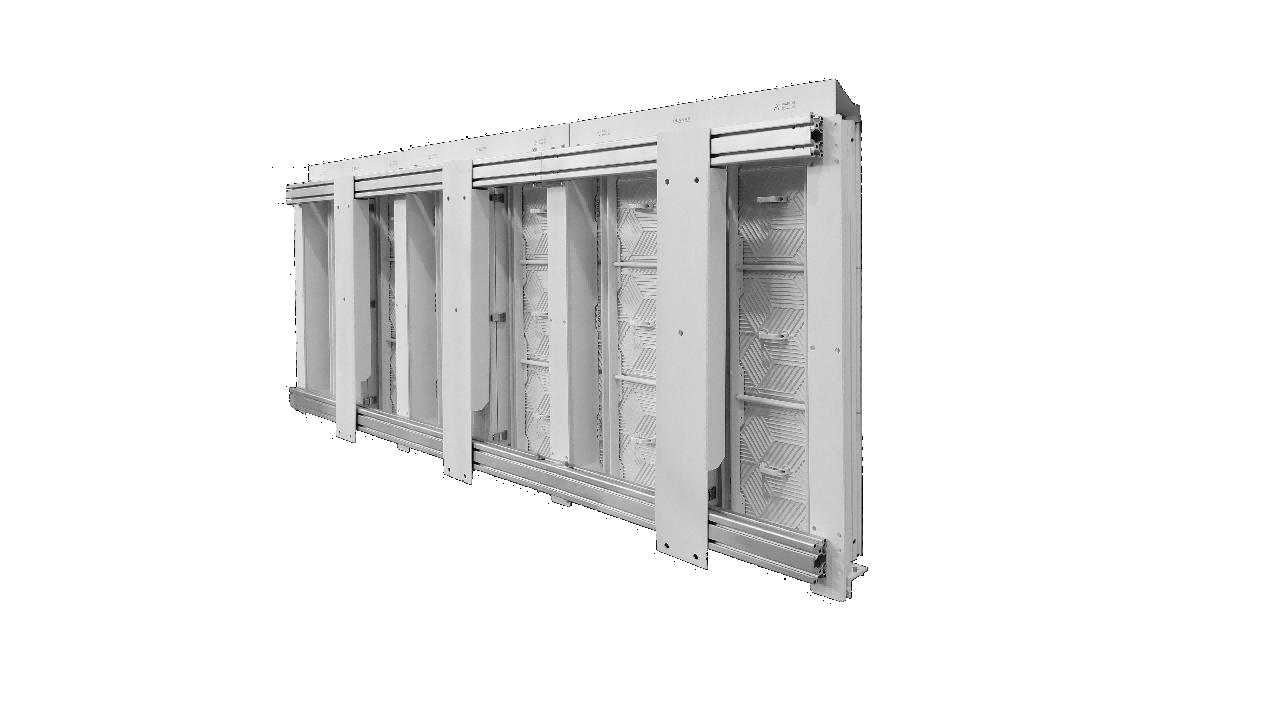

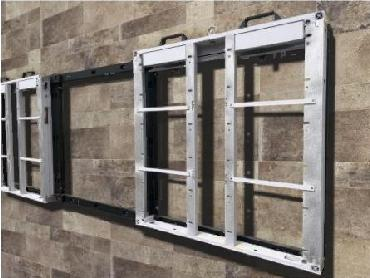

• Installation bracketinvolved in cabinet convenient for installation

Parameter	LSOS6-H Ribbon	LSOS8-H Ribbon	LSOS10-H Ribbon
Pixel Configuration	SMD 3 in 1 LED 2727	SMD 3 in 1 LED 2727	SMD 3 in 1 LED 2727
Pixel Pitch（mm）	6.25	8.33	10
Module size(mm) （W×H×D）	400x300 x20mm	400x300 x20mm	400x300 x20mm
Module resolution（W×H）	64*48	48*36	40*30

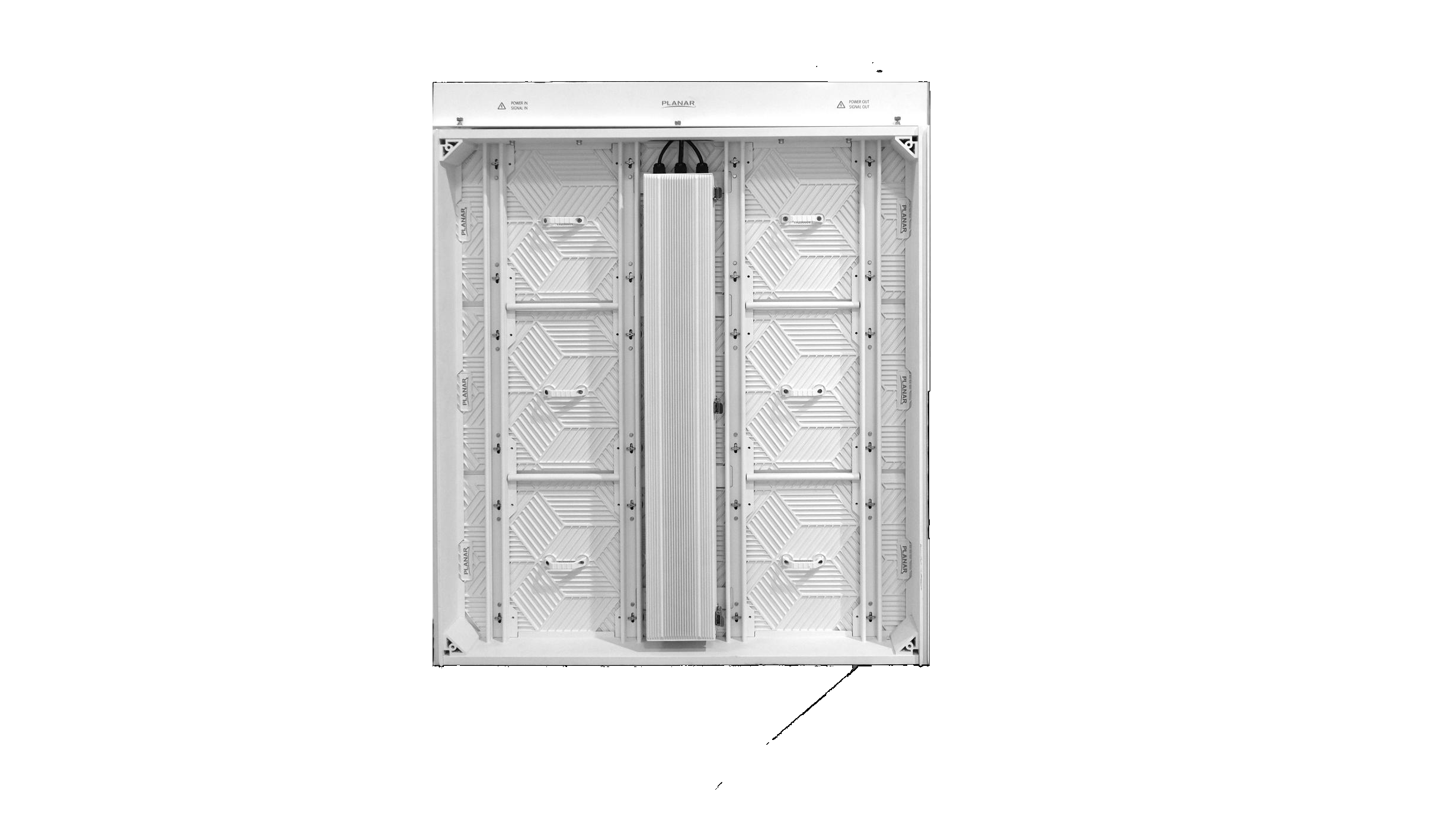

Cabinet Size（mm）（W×H×D）	800 X 900 X 102	800 X 900 X 102	800 X 900 X 102
Cabinet resolution（W×H）	128X 144	96 X 108	80 X 90
Weight（kg/cabinet）	28	28	28
Processing	14-16 bit	14-16 bit	14-16 bit
Drive method	1/6 scan	1/3 scan	1/2 scan
White Balance Brightness (nits)	≥6000	≥6000	≥6000
Viewing Angle（Horizontal/Vertical °-up/down）	160 deg / (60 deg/40 deg)	160 deg / (60 deg/40 deg)	160 deg / (60 deg/40 deg)
Contrast Ratio	>6000:1	>6000:1	>6000:1
Max Power Consumption（W/m2）	580W	580W	580W
Avg Power Consumption（W/m2）	190W	190W	190W
Power Supply	AC100~240V（50/60Hz）	AC100~240V（50/60Hz）	AC100~240V（50/60Hz）
Refresh Rate（Hz）	>3840	>3840	>3840
IP Rating	IP69K/IP65	IP69K/IP65	IP69K/IP65
Lifetime （hrs）	100,000	100,000	100,000
Operation Temperature Range（℃）	-20 -- 60	-20 -- 60	-20 -- 60
Operation Humidity Range（RH）	10 -- 95%	10 -- 95%	10 -- 95%
Mask design	Soft	Soft	Soft
Certificate	CE CB ETL FCC	CE CB ETL FCC	CE CB ETL FCC
