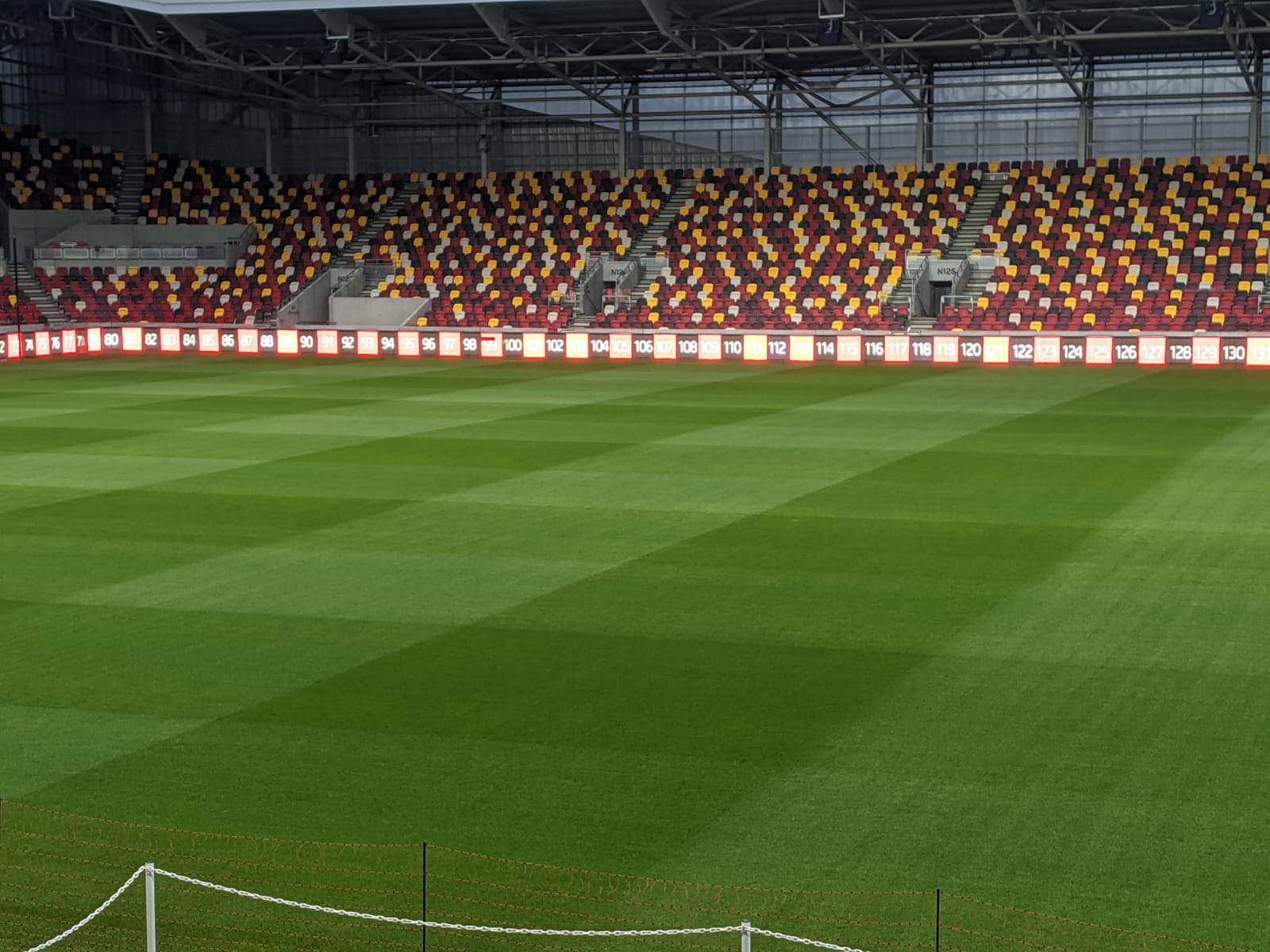

Outdoor LED Panels for Sport Events with Stable Performance
| Parameter | LSOS8 | LSOS10 |
| Pixel Configuration | SMD 3 in 1 LED 3535 | SMD 3 in 1 LED3535 |
| Pixel Pitch（mm） | 8 | 10 |
| Module size(mm) （W×H×D） | 320×160 x18mm | 320×160 x18mm |
| Module resolution（W×H） | 40 X 20 | 32 X 16 |
| Cabinet Size（mm）（W×H×D） | 960 X 960 X 100 | 960 X 960 X 100 |
| Cabinet resolution（W×H） | 120 X 120 | 96 X 96 |
| Cabinet area（m2） | 0.9216 | 0.9216 |
| Weight（kg/sqm） | 45 | 45 |
| Processing | 16 bit | 16 bit |
| Drive method | 1/4 scan | 1/2 scan |
| White Balance Brightness (nits) | ≥5000 | ≥5000 |
| Viewing Angle（Horizontal/Vertical °） | 140/120 | 140/120 |
| Contrast Ratio | 4000:1 | 4000:1 |
| Max Power Consumption（W/m2） | 800W | 800W |
| Avg Power Consumption（W/m2） | 260W | 260W |
| Power Supply | AC220~240V/AC100-120V | AC220~240V/AC100-120V |
| Refresh Rate（Hz） | >3840 | >3840 |
| Lifetime （hrs） | 100,000 | 100,000 |
| Operation Temperature Range（℃） | -20 – 60 | -20 – 60 |
| Operation Humidity Range（RH） | 10 – 90% | 10 – 90% |
| Service | R | R |
| Emergency design with rotating system | Optional | Optional |
| CE Certificate | Optional | Optional |
-
