Outdoor Sports LED Display | Stadium Perimeter LED Screen
TECHNICAL PARAMETERS
| Parameter | LSOS6-H | LSOS8-H | LSOS10-H |
| Pixel Configuration | SMD 3 in 1 LED2727 | SMD 3 in 1 LED2727 | SMD 3 in 1 LED2727 |
| Pixel Pitch（mm） | 6.67 | 8 | 10 |
| Module size(mm) （W×H×D） | 480x320 x20mm | 480x320 x20mm | 480x320 x20mm |
| Module resolution（W×H） | 72x48 | 60x40 | 48x32 |

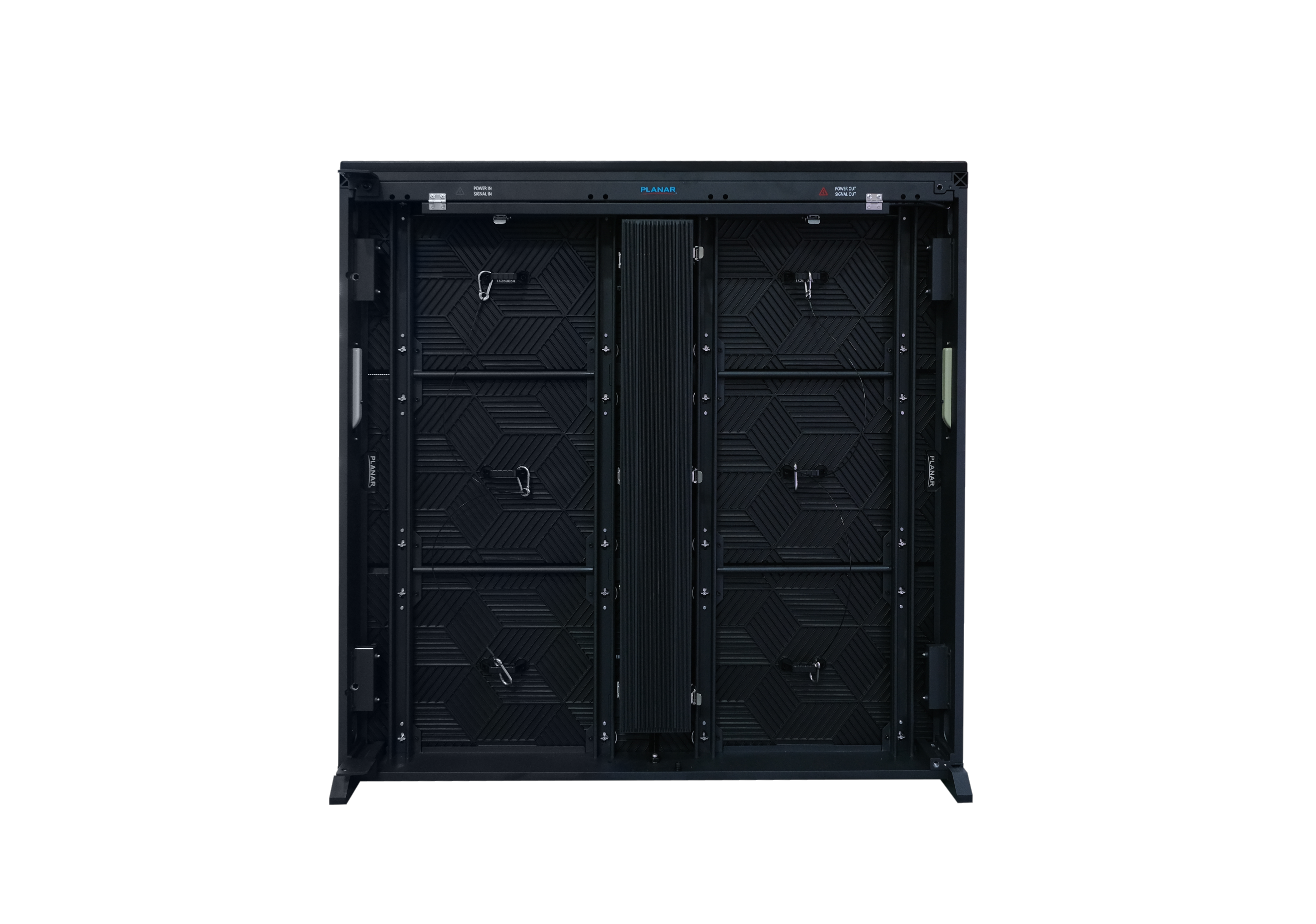

| Cabinet Size（mm）（W×H×D） | 960 X 960 X 102 | 960 X 960 X 102 | 960 X 960 X 102 |
| Cabinet resolution（W×H） | 144x144 | 120x120 | 96x96 |
| Cabinet area（m2） | 0.9216 | 0.9216 | 0.9216 |
| Weight（kg/sqm） | 45 | 45 | 45 |
| Processing | 14 bit | 14 bit | 14 bit |
| Drive method | 1/4 scan | 1/2 scan | 1/2 scan |
| White Balance Brightness (nits) | ≥6000 | ≥6000 | ≥6000 |

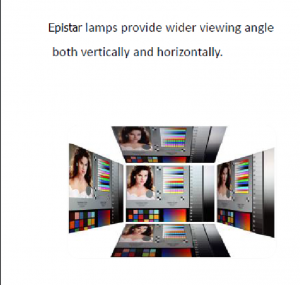

| Viewing Angle（Horizontal/Vertical °-up/down） | 160 deg / (60 deg/40 deg) | 160 deg / (60 deg/40 deg) | 160 deg / (60 deg/40 deg) |
| Contrast Ratio | >6000:1 | >6000:1 | >6000:1 |
| Max Power Consumption（W/m2） | 580W | 580W | 580W |
| Avg Power Consumption（W/m2） | 190W | 190W | 190W |
| Power Supply | AC100~240V（50/60Hz） | AC100~240V（50/60Hz） | AC100~240V（50/60Hz） |
| Refresh Rate（Hz） | >3840 | >3840 | >3840 |
| IP Rating | IP69K/IP65 | IP69K/IP65 | IP69K/IP65 |
| Lifetime （hrs） | 100,000 | 100,000 | 100,000 |
| Operation Temperature Range（℃） | -20 -- 60 | -20 -- 60 | -20 -- 60 |
| Operation Humidity Range（RH） | 10 -- 95% | 10 -- 95% | 10 -- 95% |

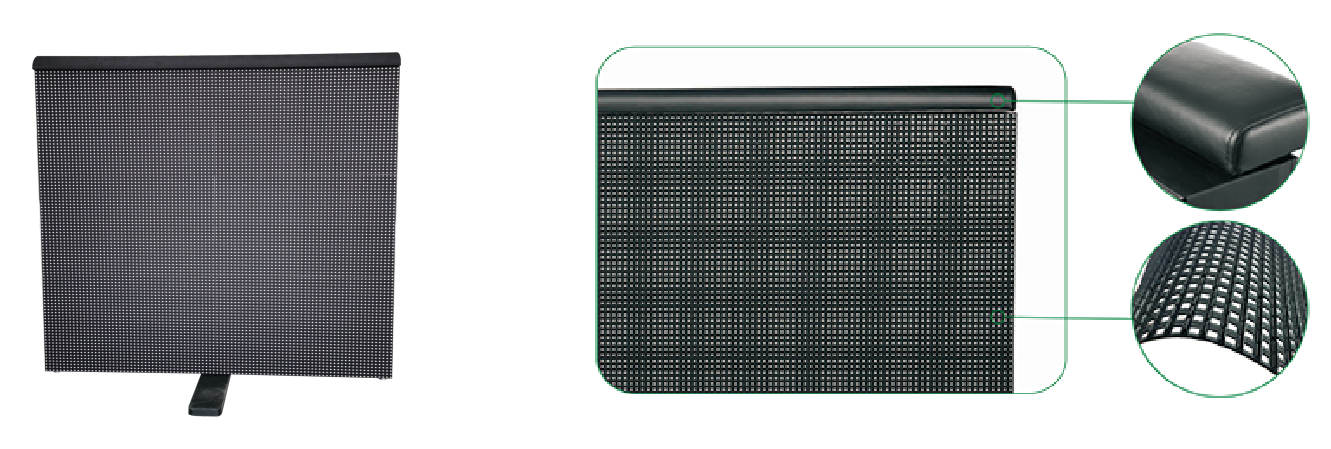

| Mask design | Soft | Soft | Soft |
| Emergency exit | Customized available | Customized available | Customized available |
