LSX-COB SERIES LED PANEL

Short Description:

LSX COB flexible LED panels support cylinder, convex and concave curved applications. Adopting common cathode COB flip-chip design, the 4mm ultra-thin module offers high brightness, ultra-high contrast, wide viewing angle and IP65 protection, ideal for creative curved LED visual projects.

Send email to us

Product Detail

Case Application

Download

Product Tags

Product Features

High Brightness: Branded large chips, 1200~1500 cd/㎡
High Contrast: ≥30000:1, high gray scale & refresh rate, vivid sharp images
Wide View: 160°H /140°V, multi-angle viewing
Ultra-thin: 4mm thin flexible module, space-saving
Common Cathode COB: Flip-chip design, low light decay, 30% power saving, longer service life
High Protection: IP65 surface, anti-static, dust & moisture resistant
Easy Cleaning: Smooth hard surface, wipe clean with damp cloth

Technical Parameters

Model Name		LSX0.9-COB	LSX1.25-COB	LSX1.5-COB	LSX1.8-COB
Technical parameter	Pixel pitch	P0.9375	P1.25	P1.5625	P1.875
	Pixel configuration	1R1G1B
	LED encapsulation	Mini Chip LED
	Pixel density (dots/m²)	1,137,778	640,000	409,600	28,800
	Module size (mm)	300×168.75
	Module resolution	320×180	240×135	192×108	160×90
	Scan method	45S	45S	54S	45S
	Refresh rate (Hz)	3840 (IC drivers can change to 7680)
	Gray scale (bit)	13-22 Bits
	Cabinet size	Depends on Structure
	Cabinet material	Customized
Optical parameter	Brightness (nits/cd/m²)	1200
	Viewing angle	≥160°/≥140°
	Contrast ratio	30000:1
Electric parameter	Max power consumption (w/m²)	~320	~330	~300	~310
	Ave power consumption (w/m²)	~150	~140	~150	~150
	Life (hrs)	100,000
Operation parameter	Working temperature (℃)	-10 ~ 45
	Working humidity (RH)	10% ~ 90%
Other	Receiving card	Nova star / Color Light
	Certification	CCC, CE, ROHS
	Operating System	Windows

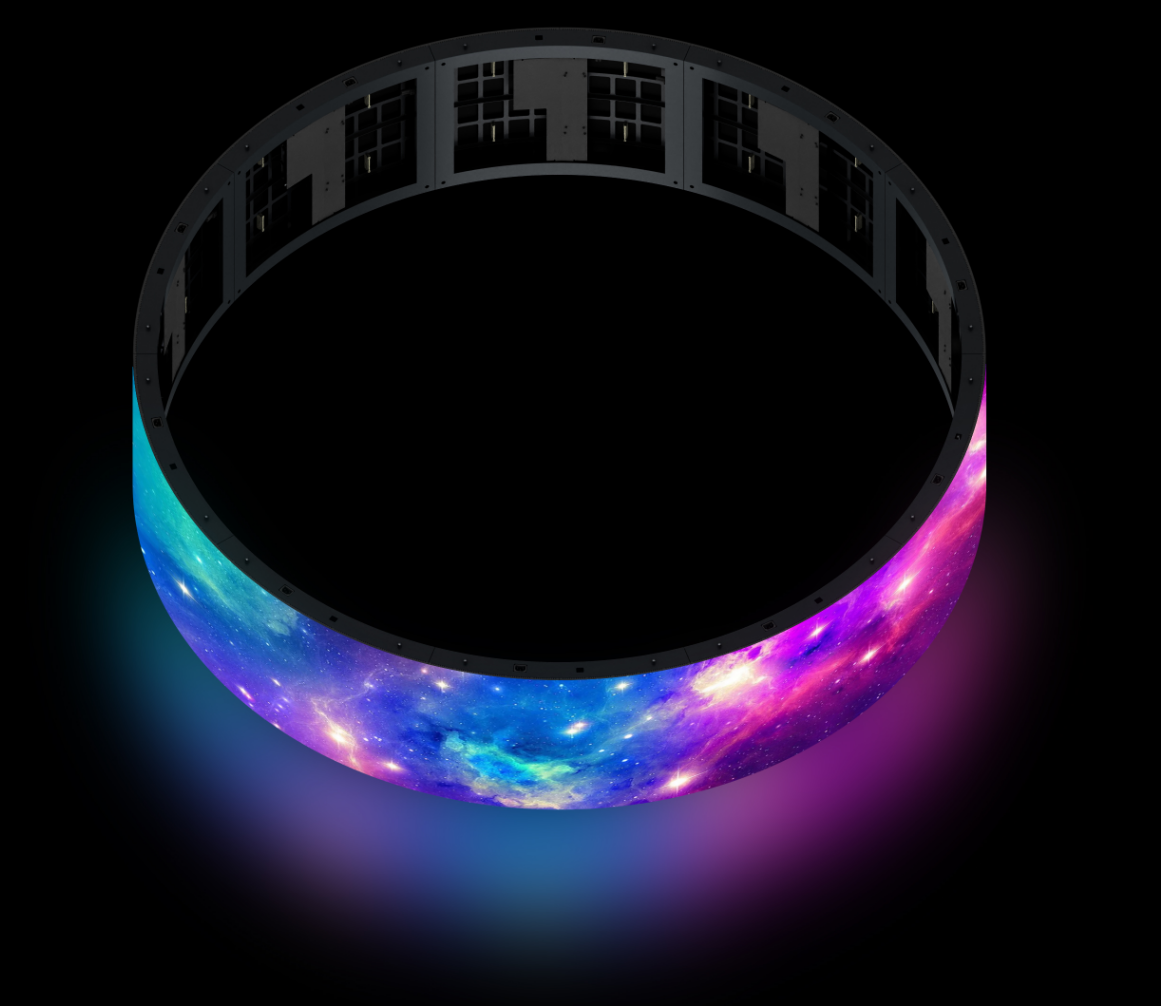

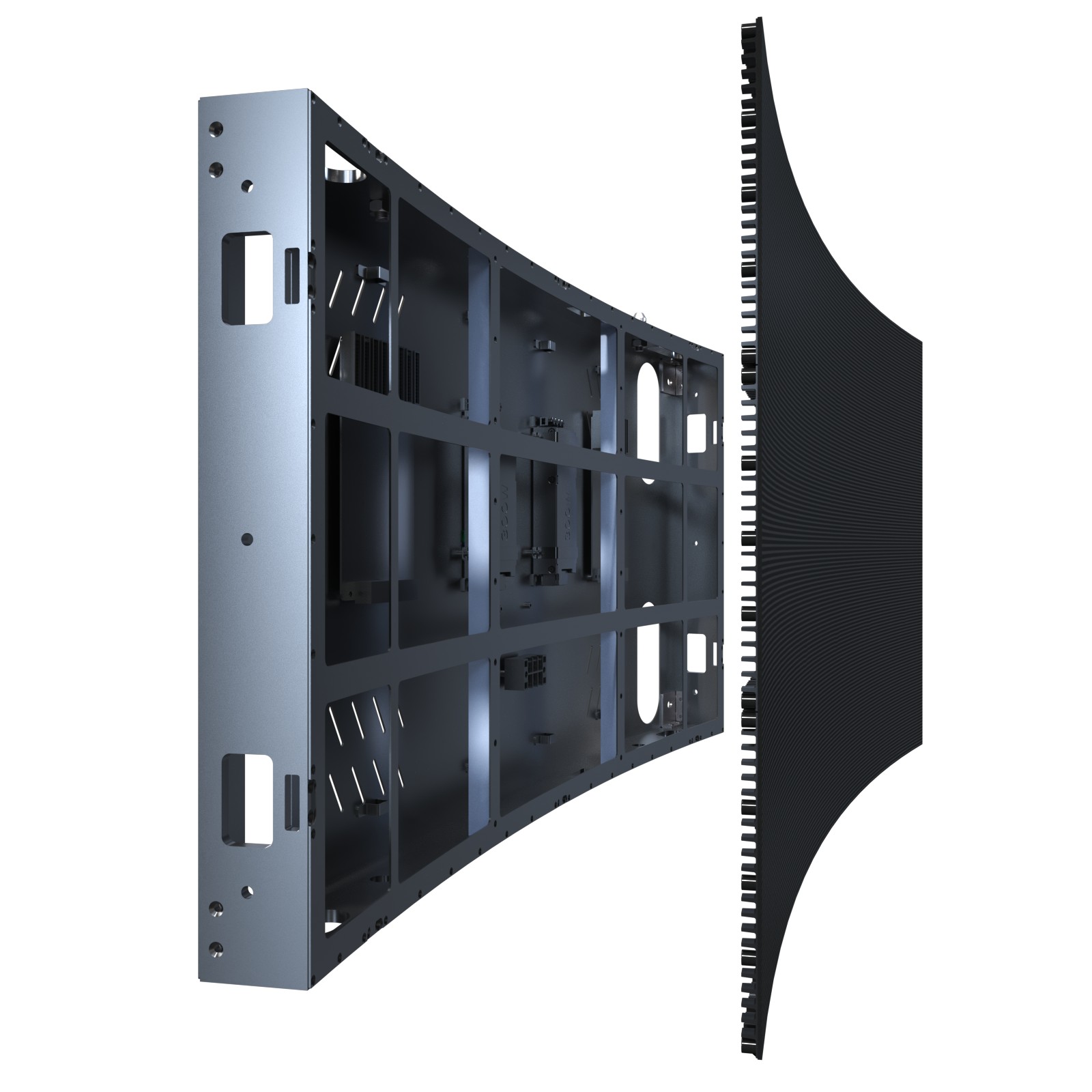

Customized CNC cabinet size according to the module quantity

Customized cabinet size can be realized according to the module quantity of LSX-COB flexible LED panels. This flexible configuration enables tailor-made display dimensions for curved, cylindrical, convex and concave projects, supporting custom-shaped visual walls while simplifying on-site installation and structural design.
